LED Mesh Screen
Shenzhen MileStrong Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of led mesh screen in China. With abundant experience, we warmly welcome you to wholesale bulk led mesh screen at competitive price from our factory. Customized orders are welcome.
Description:
LED Mesh screens have become a popular choice for outdoor building facade, ceiling LED, recreational and sports events, the stage for concerts and bars, Christmas tree decoration, water curtain screen film, decoration lighting, etc.
Features:
1. Naturally match building shape. Via the cost-effective labor & materials without supportive structure like complicated steel.
2. High Transparency up to 85%. High resolution with light and transparent and it does not affect the indoor daylighting and the original design. Fully meet the application requirements of outdoor glass wall.
3. High brightness up to 11000cd/sqm, suitable for any outdoor application.
4. Flexible and soft. Our LED mesh can be used to create a variety of shapes such as round, curved and wavy.
5. Easy to install and maintain.
6. IP65 outdoor water-proof. The lamp beads of LED mesh screen are filled with glue, and the power box is sealed to ensure good waterproof performance, which can be used normally in rainy days.
7. Arc lock design can be spliced into arc, square, cylindrical and other shapes to meet the needs of a variety of scenes.
8. Right-angled Connection. The edges of each module are designed to be 45 degrees, it is easier to make right-angled connection and realize glasses-free 3D LED display.
Hot Tags: led mesh screen, China, suppliers, manufacturers, customized, wholesale, price, bulk, Flexible LED Mesh, Flexible LED Curtain Screen, LED Mesh Curtain, Soft Curtain LED Wall, Outdoor Transparent LED Wall, Flexible LED Curtain Display
Product Model | STC-1 Dot-75 | STC-1 Dot-100 |
Pixel Pitch (dots/㎡) | 75 | 100 |
Pixel Density (dots/㎡) | 178 | 100 |
Brightness (cd/㎡) | 530 | 300 |
Max Module Size (mm) | 0.6x24.8 | 0.4x33 |
Max Power Consumption (W/㎡) | 80 | 45 |
Avg Power Consumption (W/㎡) | 27 | 15 |
Transparency | 75 | 80 |
Screen Weight (kg/㎡) | 2.74 | 2.3 |
Module Resolution | 4x330dots max | |
Sub-Controller | 640W-5.8kg, 1280W-7.2kg, 2100W-9kg | |
Unit Power Consumption (W/㎡) | 0.45 | |

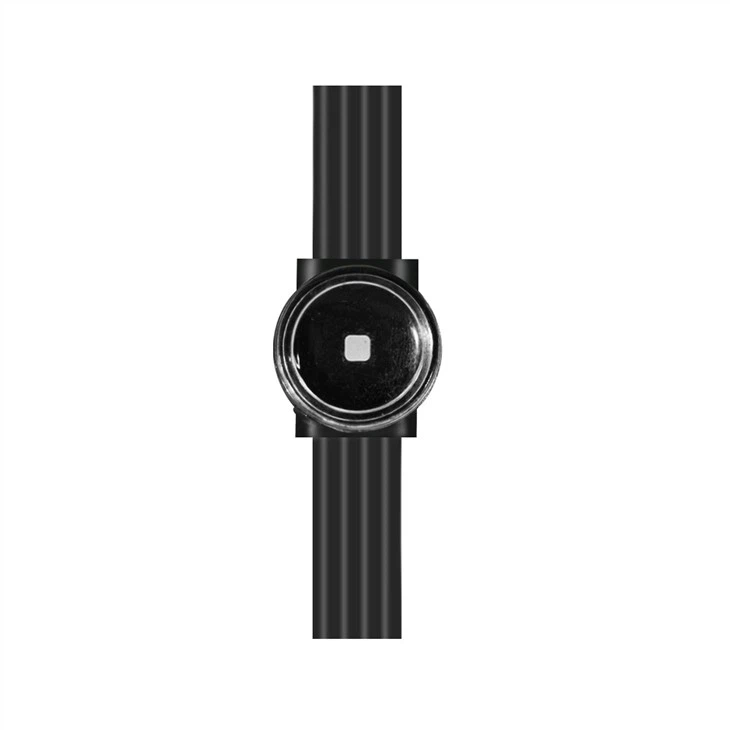

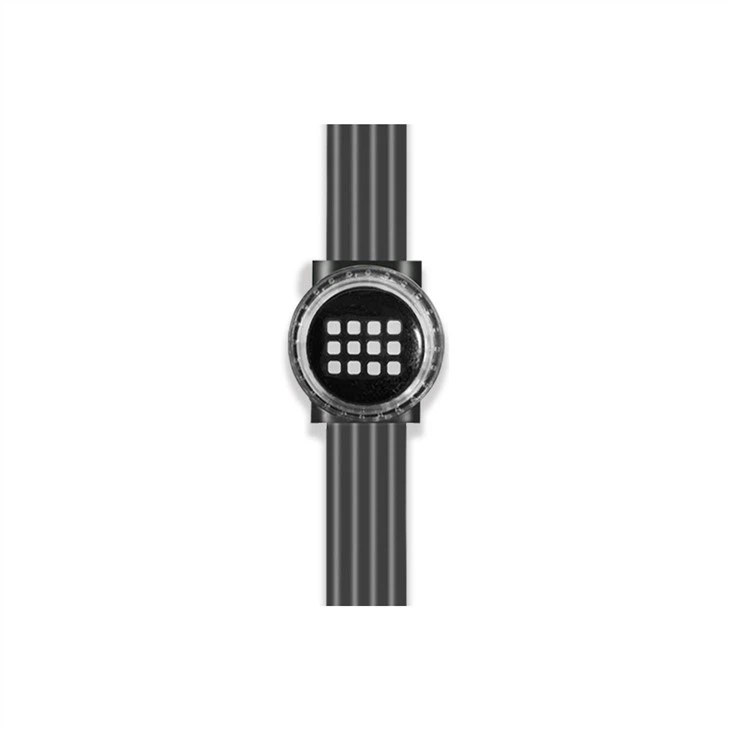

Dot Size | L20xW18xH14(mm) D18mm | |
Driving IC | UCS5603A | |
Video Source | DVI, HDMI, VGA | |
LED Type | RGB 3IN1 SMD3535*1 Nationstar Golden Wire | |
Viewing Angle | 120°(H)/120°(V) | |
Gray Scale | 12bit | |
Display Scale | 68.7 Bilion | |
Refresh Rate | ≥1920Hz | |
Control System | Nova | |
Signal Transmission | CAT: 80m or Fiber Optic | |
Input Voltage | AC110~240V, 50/60Hz, (9DC7.5/12V) | |
Working Environment | Temperature -30℃~60℃, Humidity10%~90%RH | |
IP Rating | IP66 | |
Operating Life (Hrs) | ≥100,000Hrs | |
