Column LED Display Solutions
LED Displays Designed Around Your Column Structure
Column LED projects require more than simply wrapping an LED display around a column. The column shape, surface structure, curvature, display coverage, viewing distance and installation method all affect product selection and system design.
MileStrong provides flexible, conventional, transparent and customized LED display solutions designed around different column structures, from product selection and technical configuration to manufacturing and project support.
Designed for Different Column Structures

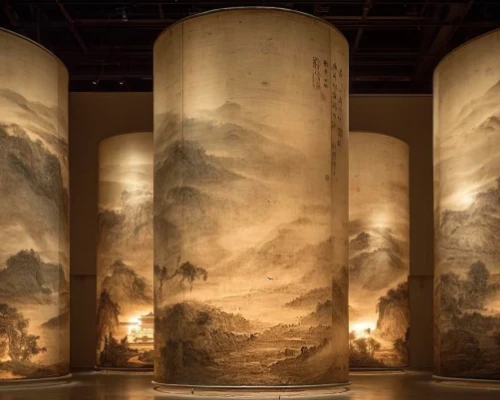

Cylindrical Column
Cylinders are a typical structural form in column-mounted LED displays; it is usually necessary to consider the degree of alignment between the screen and the column surface, the diameters of the column and the screen, and the overall display coverage.
Triangular Column
When working with triangular prisms, the main focus is on managing the connections between the three display surfaces, paying particular attention to the smoothness at the corners, the quality of the joints and the visual continuity across all surfaces.
Square Column
Square columns are typically composed of multiple planes and can be installed as individual planes or as multi-plane assemblies, depending on the display coverage required. Key considerations include corner joints, structural fixation and access for maintenance.
Polygonal Column
A polygonal prism is composed of multiple planes at different angles; product and structural configurations must be determined based on the number of edges, angles and display faces to ensure that the connections between the display faces appear natural.
Irregular Column
The challenges associated with irregular columns typically lie in their irregular curvature, variations in dimensions and the difficulty in standardizing their installation structures. The design process requires a bespoke approach that takes into account the actual dimensions of the column, variations in its surface, load-bearing conditions and maintenance requirements.
Matching the Right LED Technology to Your Column

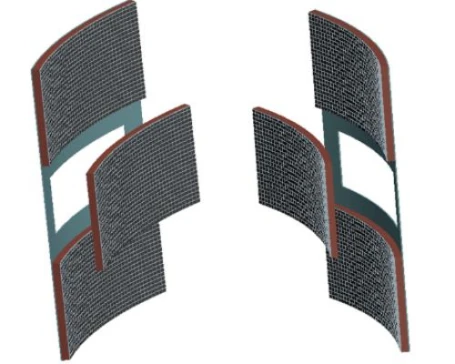

Flexible LED Module
Best for Complex Curves & Continuous Column Surfaces
Flexible LED modules are suitable for cylindrical, irregularly shaped and highly curved columns. The modules can be bent to conform to the surface of the column.
Technical Advantages
- Flexible bending capability
- Better surface conformity
- Suitable for irregular structures
- Supports customized module configurations

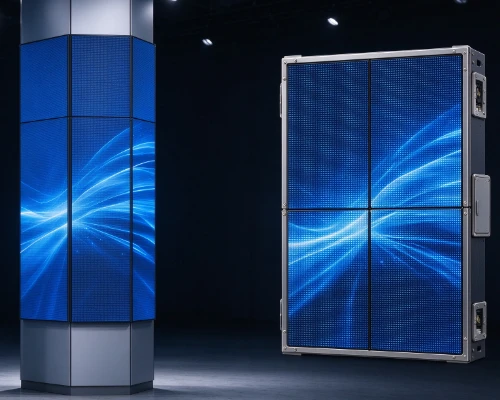

Conventional LED Cabinets
A Cost-Effective Option for Flat-Surface Columns
For square columns, polygonal columns and columns with multiple flat mounting surfaces, standard LED enclosures are generally the more cost-effective option.
Technical Advantages
- Standardized cabinet design
- Easier installation and lower cost
- Convenient maintenance
- Mature control and power solutions

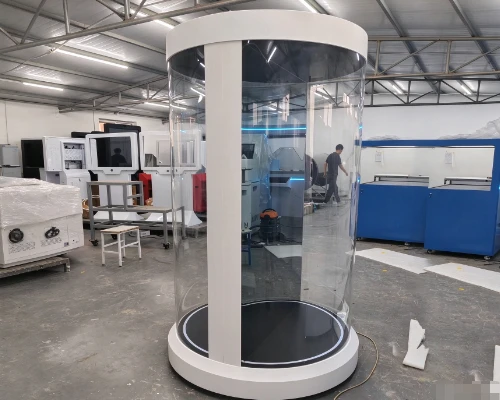

Transparent LED Display
When Visibility Through the Column Matters
If the project has specific requirements regarding the column's original structure, natural lighting or visual transparency, transparent LED display products may be considered.
Technical Advantages
- High transparency
- Lightweight visual structure
- Reduced obstruction of the background
- Suitable for special architectural conditions
Custom LED Display
For Special Curvature & Structural Precision
For non-standard columns, columns of special dimensions, and projects where standard products are not directly suitable, bespoke designs can be provided.
Bespoke designs may include:
- Shape
- Size
- Module Configuration
- Cabinet Structure
- Mounting Structure
MileStrong Professional Project Process
Project Assessment
Review the column shape, dimensions, drawings, site photos and installation conditions to understand the actual structure and display requirements.
Product Recommendation
Select the most suitable LED product based on the column geometry, display coverage, viewing distance, technical requirements and project budget.
Technical & Structural Design
Develop the display configuration and mounting structure around the actual column, including module arrangement, fixing method, cabling and maintenance access.
Engineering Review
Review technical drawings, 3D models or structural details with the customer to confirm product fit, installation feasibility and final configuration before production.
Manufacturing & Quality Testing
Manufacture the LED display and customized components according to the approved design, followed by assembly, display testing and quality inspection.
Delivery & Project Support
Provide installation guidance, system configuration and technical support to help ensure smooth installation, commissioning and project handover.

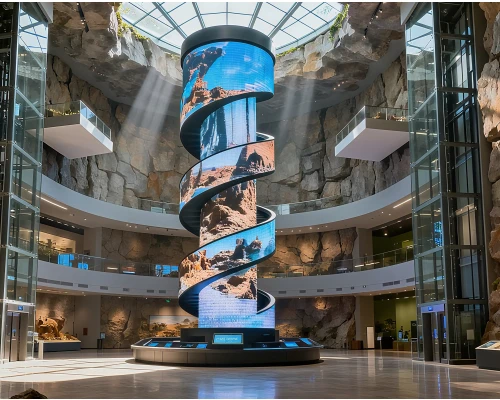

Applications
Column LED displays can be used across retail spaces, shopping centers, hotels, museums, exhibition venues, corporate interiors, entertainment facilities, public spaces and other architectural environments. Depending on the column shape and project requirements, MileStrong can configure flexible, conventional, transparent or customized LED displays to create visual surfaces that integrate naturally with the surrounding architecture.
