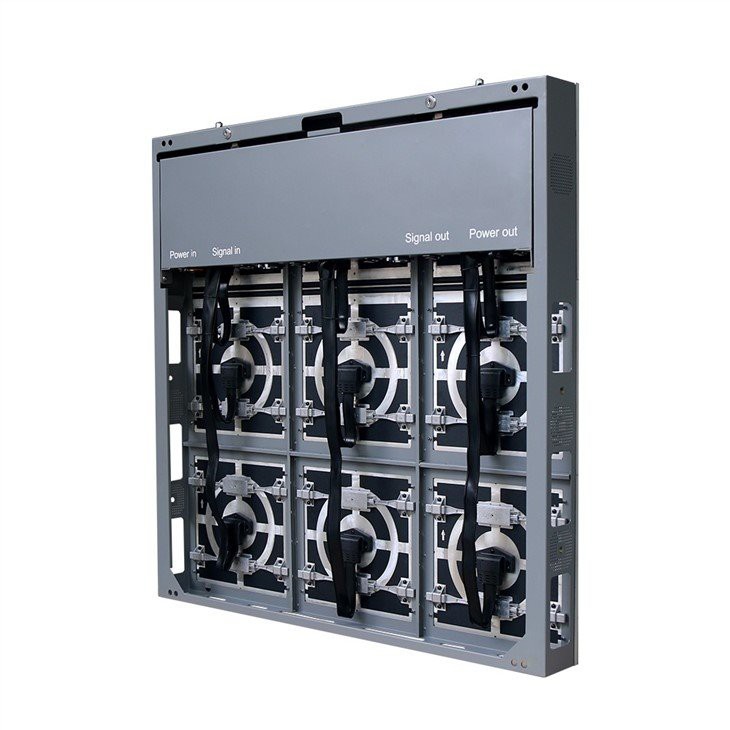

P8 Outdoor LED Billboard
Description:
Milestrong’s outdoor LED billboard covers P4-P10 equidistant specification modules. As the carrier of outdoor advertising media, our P8 outdoor LED billboard is stable and reliable, the picture is gorgeous and ultra-wide vision. It can be used for advertising in busy business circles, traffic arteries and other places.
Features:
1. Nationstar brand lamp beads, multiple-waterproof, stable and reliable performance, all-round detection and systematic quality management.
2. Dual lock drive IC, 1920hz + refresh, fine picture, smooth image, with column blanking function, can eliminate ghost phenomenon, support low-voltage 4.5V power supply, energy saving and environmental protection.
3. With high protection level, it is suitable for various outdoor scenes. The polymer plastic kit ensures the strength of the module. The lamp board IC adopts double three prevention technology to protect the sealing at the bottom of the IC.
4. The P8 outdoor LED billboard can be seamlessly spliced. The system can receive multiple input signals and display them on the screen at the same time. The picture is not divided, uniform and consistent, and there is no black line.
5. Our P8 outdoor LED billboard adopts high-end driver chip, with strong color reduction and outstanding screen performance. The whole screen adopts high-precision box, and the whole unit is connected; It can realize the screen display function of ultra-high resolution, support pixel point-to-point display, and have no loss of image details.
Hot Tags: p8 outdoor led billboard, China, suppliers, manufacturers, customized, wholesale, price, bulk, LED Panel P10, P8 LED Display, Outdoor Digital Sign Boards, P5 Outdoor LED Screen, P5 LED Wall, P4 LED Display
Product Model | SN 8 |
Pixel Pitch (mm) | 8 |
Module Size (mm) | 320x320 |
Module Resolution (dots) | 40x40 |
Cabinet Size (mm) | 960x960 |
Cabinet Resolution (dots) | 120x120 |
Cabinet Weight (kg) | 32 |
Pixel Density (pixel/㎡) | 15,625 |
Brightness (nits) | 6000~10000 |
Color Temperature (K) | 3000~10000 |
Viewing Angle (W/H) | 160/140 |
Contrast Ratio | 5000:1 |
Refresh Rate (Hz) | 1920/3840 |
Frame Rate | 50/60Hz |
Power Consumption (W/㎡) | Max:600; Avg:200 |
Service Access | Front & Rear |
Lifetime (Hours) | 100000 |
Working Temperature (℃) | -40~70 |
Working Humidity (%) | 0~90 |
