P2 LED Video Wall
Pixel Pitch (mm): 2
LED Configuration: 1R1G1B
LED Type: SMD 1515
Physical Density (dot/㎡）: 250,000
Module Size (WxHxD) mm: 240x180x15
Module Resolution (WxH) mm: 120x90
Cabinet Size (WxHxD) mm: 480x540x67
Send Inquiry
Product Details of P2 LED Video Wall
Shenzhen MileStrong Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of p2 led video wall in China. With abundant experience, we warmly welcome you to wholesale bulk p2 led video wall at competitive price from our factory. Customized orders are welcome.
Description:
P2 LED video walls excel in brightness and reliability, creating an amazing and vivid viewers experience anywhere. With high resolution, ultra-wide color gamut, and seamless fine pixel, P2 LED video wall can take the strength of indoor LED video wall to applications outside the typical LED application scenarios, including control room, broadcasting, conference room, TV studio, church and even some commercial business advertising.
Features:
1. 1515 pure black lamp. 240x480mm pure black lamp panel, high contrast, good consistency.
2. Low brightness, while high gray scale, high refresh rate up to 3840/Hz, 16bit gray scale level, high refresh rate, smooth and HD display performance.
3. Front access and rear access option. Choosing suitable access way based on installation environment save cost.
4. High definition and delicate, ultra-high contrast up to 10000:1. Highly restore the real picture, P2 led video wall displaying dazzling and vivid colors.
5. Strong protection. Full board epoxy resin seal, with waterproof, moisture-proof, dust-proof, anti-collision, anti-greasy,
6. Anti-oxidation, anti-static properties, and has the characteristics of abrasion resistance and easy clean.

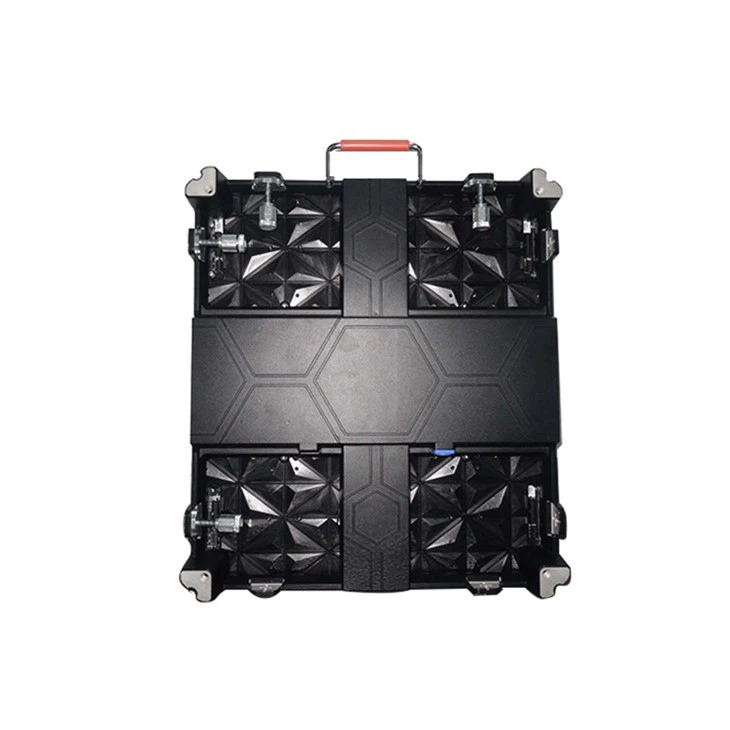

7. Clean cabinet body, easy to install and disassemble. P2 LED video wall adopting die-casting aluminum cabinet with 480*540mm.
8. Glare-free display to cut down on the amount of light that reflects off the display.
9. Ultra-wide color gamut. P2 LED video wall can make a screen look even more realistic.
Hot Tags: p2 led video wall, China, suppliers, manufacturers, customized, wholesale, price, bulk, Indoor Full Color LED Display, P2 5 LED Wall Screen, Narrow Pixel Pitch LED Display, LED Video Wall Display, Indoor Advertising LED Display Screen, P2 LED Display Screen
| Item | MK 2.5 |
| Pixel Pitch (mm) | 2.5 |
| LED Configuration | 1R1G1B |
| LED Type | SMD 1515 |
| Physical Density (dot/㎡） | 160,000 |
| Module Size (WxHxD) mm | 240x180x15 |
| Module Resolution (WxH) mm | 96x72 |
| Cabinet Size (WxHxD) mm | 480x540x67 |
| Cabinet Material | Die-casting aluminum |
| Scanning Mode | 1/24 |
| Cabinet Flatness (mm) | ≤0.10 |
| Gray Scale (bit) | 14bit+control software 2bit+16bit |
| Installation/ Service Method | Front or black installation/ Front service |
| Brightness (cd/㎡） | 800-1000 |
| Color Temperature | 3200-9300K adjustable |
| Brightness Uniformity | ≥98% |
| Color Uniformity | within 0.003Cx, Cy |
| Horizontal /Vertical View Angle | ≥140°/≥120° |
| Contrast Ratio | ≥5000：1 |
| Color Calibration of Single Dot | Yes |
| Brightness Calibration of Single Dot | Yes |
| Drive Mode | Contrast Current Drive |
| Module Input Voltage DC | 4.6V |
| Module Max Current DC | 5.5A |
| Standard Receiving Card | A6S |
| Refresh Frame Frequency | 50/60Hz |
| Max Refresh Rate | ≥3840Hz/1920Hz |
| Network Connection Port | HUB73 |
| Input Voltage | AC110-220V |
| Cabinet Max Power Consumption | ≤600W/㎡ |
| Cabinet Avg Power Consumption | ≤180W/㎡ |
| Working Temperature | -20℃~45℃ |
| Working Humidity | 10%~95% |
