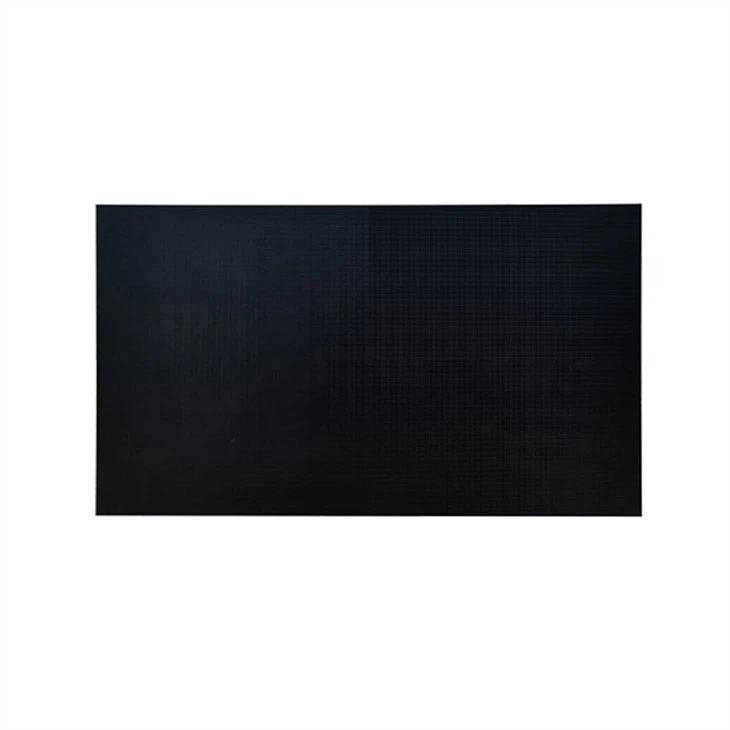

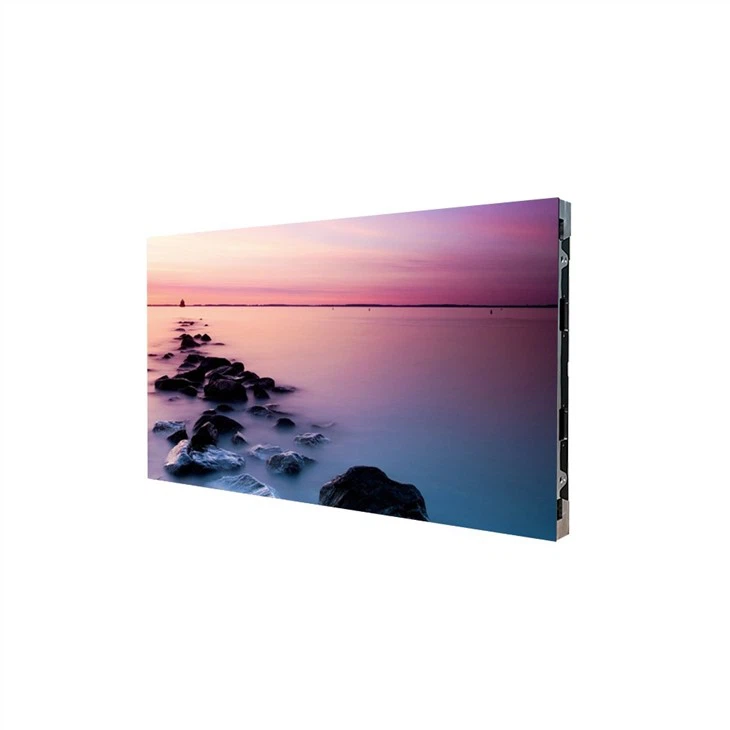

Indoor Full Color HD Video Wall
Module Size (mm): 150x168.75
Module Resolution (L*W): 168x180
Scanning Mode: 1/60
Cabinet Flatness (mm): ≤0.10
LED Configuration: 1R1G1B
Send Inquiry
Product Details of Indoor Full Color HD Video Wall
Description:
Our indoor full color HD video wall adopts a standard cabinet size of 600x337.5mm, with a size ratio of 16:9, which can match HD video / picture sources point-to-point, and can freely splice 2K / 4K / 8K large screens. The 27inch single cabinet display surface can replace the 54 inch and 108inch standard size LCD.
The indoor full color HD video wall is equipped with 64 scan high-performance driver IC to effectively improve the refresh frequency and make the picture play more delicate and smoother.
Features:
1. 150x168.75mm module, P0.93 common cathode, P1.25 common cathode, P1.25, P1.56, P1.87, P2.5mm point spacing optional.
2. 600x337.5mm standard box size, 16:9 wide screen ratios.
3. The module of indoor full color HD video wall adopts suspended adjustable hard connection to support module fine-tuning.
4. Our indoor full color HD video wall supports dual backup of power supply and system.
5. Front installation and maintenance to save installation space and maintenance channel.
6. Great protection. Epoxy resin process, waterproof, dust-proof, anti-collision, easy to clear and operation.
7. Thermal effects calibration. Perfect solution to the phenomenon of bluing after temperature rise.
8. The LED light-emitting chip is directly packaged on the PCB board, which realizes the conversion of the LED display unit from a “point” light source to a “surface” light source, which effectively improves the viewing comfort and safety and reliability of the LED display. It is mostly used for small spacing. Ultra-definition display solution.
Specifications:
Item | MT 0.93 Common-cathode |
Module Size (mm) | 150x168.75 |
Module Resolution (L*W) | 168x180 |
Scanning Mode | 1/60 |
Cabinet Flatness (mm) | ≤0.10 |
LED Configuration | 1R1G1B |
LED Type | Common-cathode 1010 (4in1) |
Service Way | Front Service |
Cabinet Size (mm) | 600x337.5 |
Cabinet Resolution (L*W) | 640x360 |
Physical Density (dot/㎡） | 1,137,778 |
Brightness (cd/㎡） | 500~800 |
Max Power Consumption | 550W |
Avg Power Consumption | 180W |
Cabinet Material | Die-casting aluminum |
Contrast Ratio | ≥8000：1 |
Gray Scale | 14bit (software 16bit) |
Refresh Rate (Hz) | ≥3840 |
Refresh Frame Frequency | 50/60Hz |
Horizontal View Angle | ≥140° |
Vertical View Angle | ≥120° |
Best Viewing Distance | 1m |
Module Supply Voltage DC | 2.8+3.8V |
Module Max Current DC | 1.5A+2.8A |
Input Voltage (V) | 110-220V |
Working Temperature (℃ | -20~45 |
Lifespan (Hours) | ≥100,000 |
